Corrugated And IT4 Roofing Sheet Making Machine For Sale - Lagos
Tuesday, 18 November 2014
Item details
City:
Lagos » Lagos Mainland
Offer type:
Sell
Item description
Corrugated & IT4 Roof Cladding Sheets Making Machine

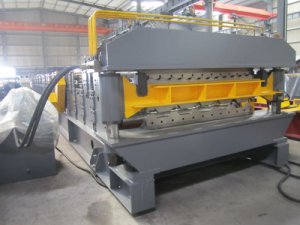

We are supplying customers with all kinds of metal rollform processing machine, such as corrugated roof sheets making machine, IT4 roof sheet making machine, long span roof sheet making machine, step tile roofing sheet making machine, met coppo tile roofing sheet making machine, ridge caps bending machine and so on. This roof sheet roll forming machine is an advanced metal working rollformer, which is manufacturing pre-painted IT4 roof sheets & galvanised corrugated roofing sheets with a high speed. The roof panel machine consists of decoiler, sheet guiding equipment, roll forming system, cutter, support tables, hydraulic system, and control system.
MAIN PARAMETERS:
1. Material Spec. Q235; Thickness: 0.4mm to 0.7mm
Galvanized Steel Sheets in COILS (ex: JIS 93 302)
Prepainted Galvanised Steel Sheets in COILS (ex: JIS G 3312)
Galvalume Steel (ALU ZINC) Simple or Prepainted in COILS
Prepainted Aluminium Sheets in COILS (ex: AA 5005 & 3003)
2. Hydraulic decoiler Max. Capacity: 5000KGS
3. Controlling system: PLC
4. Main machine power: 5.5kw
Hydraulic station power: 2.2kw
5. Working speed: 18~20m/min
6. PLC: PLC control panel, transducer and touching screen imported from Mitsubishi
7. Power: 380V/3ph/50HZ or at buyer's requirement.
Low Machine Cost/High Machine Quality/Short Time for Recouping Investment
If you want to get more information about this corrugated and IT4 roofing sheet making machine, such as price, delivery time, payment and so on, please contact us by the following information:
Email: metalrollformer@yahoo.com
Mobile: +0086 158 6814 2550
Place of Origin: China
Professional Manufactuer of Steel & Aluminium Roll Forming Machine, Roll Former, Corrugating Machine, Rolling Plant, Rollformer from China
